PRECISION WEIGHING / PRECISION BALANCES

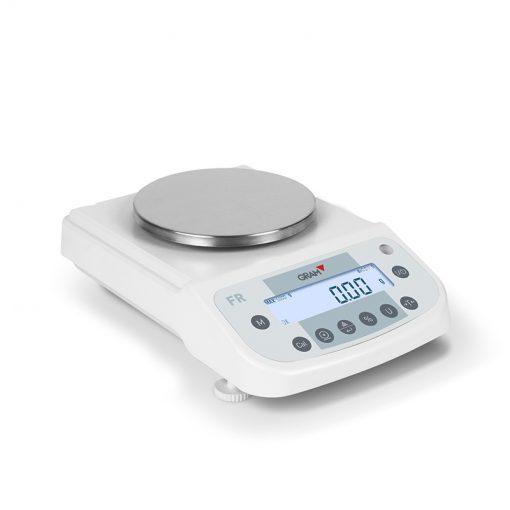

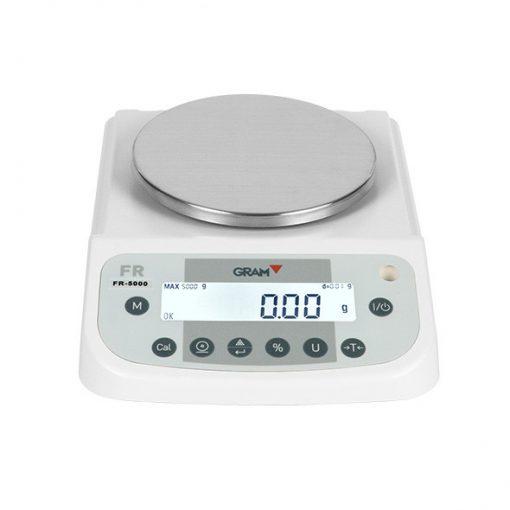

Gram FR series – Fast and highly reliable laboratory scale
Type FR-3200
3200g/0.01g

Functions:
Check-weighing
Piece-counting
Percentage calculation
Connection for printer or PC

Characteristics:
Fast-response, high-precision ceramic weight sensor
Wind-protected glass chamber for 0,001 g resolution models
Lateral and superior access doors
Hydrostatic weight hook (optional)
Stainless steel pan (115 mm ∅ / 160 mm ∅)
Clear and easy-to-read LCD display with backlight
Easy-to-use keyboard with intuitive navigation

DESKRIPSI

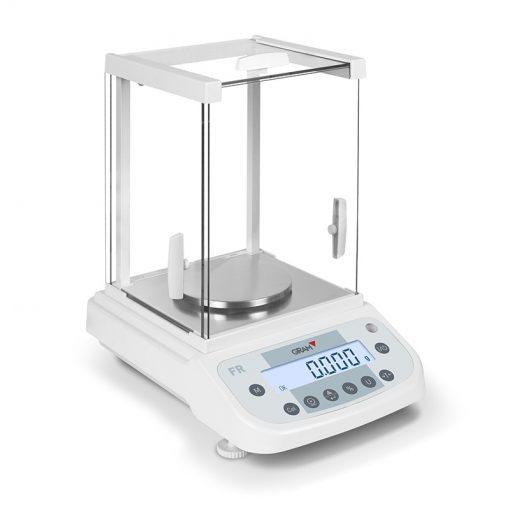

Wind-protected weighing chamber
Weighing pan protected from wind interferences in FR-320 and FR-500 models

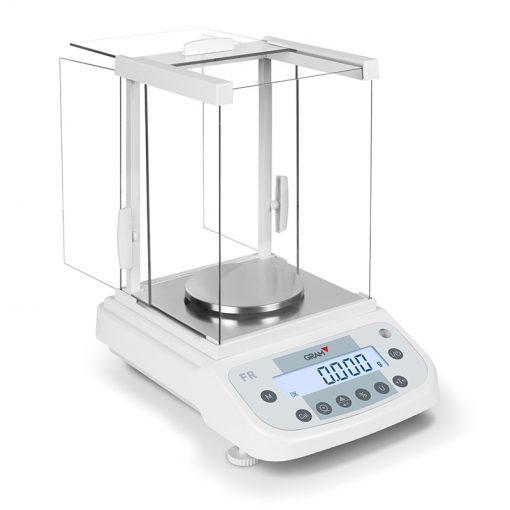

Easy access
Accessible weighing pan thanks to its lateral and superior doors

MODEL FR-3200
Capacity (g) 3200
Readability accuracy (g) 0,01
Linearity (g) ± 0,02
Repeatibility (g) ± 0,01
Excentricity (g) ± 0,02
Responding time Less than 1,5 seconds
Power 220 V / 50 Hz
Working temperature 0 ºC / 30 ºC
Warm up time 50 minutes
Calibration External
Weight units g, ct, dwt, gn, lb, mo, oz, tl
Interface RS-232
Humidity Max 80 % without condensation
Fluid statics weighing Optional
Weighing plate dimensions (mm) 160 Ø
Weighing chamber dimensions (mm) -
Product dimensions (mm) 310 x 201 x 70
Weight (kg) 2

AVAILABLE OPTIONS

PR4 printer with cable
PR6 printer with cable
RS-232 cable for PC
RS-232 cable for printer

INFORMASI TAMBAHAN

BERAT 5000 g
TYPE FR-3200
